Reverse Tap Dispensers
Different sizes for every use your store many need
The ReverseTap Machines are so fast that one trained bartender can fill up to 12 cups per minute, that is 5 SECONDS PER CUP (depending on cup size) and 4 times faster than conventional dispensing.
ReverseTap Basic Counter-Top Single Nozzle
ReverseTap Basic In-Counter Single Nozzle
ReverseTap Basic Counter-Top with LCD
Dual Nozzle
| Info | |
|---|---|
| Model | RD-BL2 |
| Product Size | 350 x 357 x 140 (mm) |
| LCD Display Size | 7 inch LCD Disply |
| Product Weight | 7.5 kg |
| Packaging Size | 440 x 427 x 214 (mm) |
| Packaging Weight | 8.4 kg |
Reversetap Twin unit Counter top FEATURES:
Features:
Video contents can be displayed with USB, 7″ LCD, Speaker, Each dispenser can serve different liquids
Components:
Main frame, Plate, Hole covers (2), 2 Set of grippers, Nozzle (2), Adapter, Remote controller, Etc
Waterproof:
Dispensing area (upper part): 100% waterproof; Display area (control part): Water resistant
Maintenance:
After disassembling the nozzle and gripper, rinse the dispense with warm water. (Don’t use the scrubber). Place the lids on top of the dispenser during non-operation.
Video:
Video can be auto-played once USB with video contents is plugged in. (USB slot is located at the bottom left of the front frame)
S/W Upgrade:
S/W version can be upgraded with USB. (USB slot is located at the bottom right of the front frame)
ReverseTap Basic Counter-Top
Single Nozzle
| Info | |
|---|---|
| Model | RD-B1 |
| Product Size | 238 x 300 x 99 (mm) |
| Product Weight | 1.5 kg |
| Packaging Size | 365 x 330 x 142 (mm) |
| Packaging Weight | 3 kg |
Reversetap single unit Counter top FEATURES:
Components:
Main frame, Plate, Hole cover, Gripper, Nozzle, Adapter
Waterproof:
Dispensing area (upper part): 100% waterproof; Display area (control part): Water resistant
Maintenance:
After disassembling the nozzle and gripper, rinse the dispense with warm water. (Don’t use the scrubber). Place the lids on top of the dispenser during non-operation.
ReverseTap Premium In-Counter
Dual Nozzle
| Info | |
|---|---|
| Model | RD-SF2 |
| Product Size | 320 x 302 x 100(33) (mm) |
| Product Weight | 4.5 Kg |
| Packaging Size | 370 x 450 x 150 (mm) |
| Packaging Weight | 5.5 kg |
| Color | Flat Metallic Silver |
Reversetap dual premium unit FEATURES:
Components:
Main frame, Plate, Hole cover, Gripper, Nozzle, Adapter, Etc.
Waterproof:
Dispenseing area(upper part) : 100% waterproof; Display area(control part) : Water resistant
Maintenance:
After disassembling the nozzle and gripper, rinse the dispense with warm water. (Don’t use the scrubber). Place the lids on top of the dispenser during non-operation.
Note:
This product is available from 2018 in the following countries and regions: Europe, Oceania, Africa, Middle East, India, Japan, Russia, China, Taiwan, Hong Kong
ReverseTap Basic In-Counter
Single Nozzle
| Info | |
|---|---|
| Model | RD-BF1 |
| Product Size | 208 x 279 x 100 (27) (mm) |
| Product Weight | 1.5 kg |
| Packaging Size | 365 x 330 x 142 (mm) |
| Packaging Weight | 3 kg |
Reversetap single in counter unit FEATURES:
Components:
Main frame, Plate, Hole cover, Gripper, Nozzle, Adapter
Waterproof:
Dispensing area (upper part): 100% waterproof; Display area (control part): Water resistant
Maintenance:
After disassembling the nozzle and gripper, rinse the dispense with warm water. (Don’t use the scrubber). Place the lids on top of the dispenser during non-operation.
ReverseTap Premium Counter-Top w/Backlit Display
Dual Nozzle
| Info | |
|---|---|
| Model | RD-S2 |
| Product Size | 384 x 372 x 140 (mm) |
| Product Weight | 9.5 kg |
| Packaging Size | 430 x 430 x 190 (mm) |
| Packaging Weight | 10.5 kg |
Reversetap RD-SD2 FEATURES:
Features:

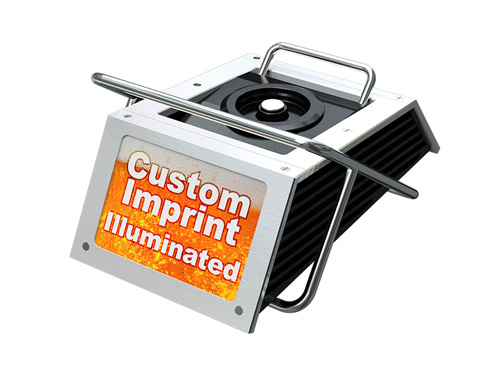

Advertising brands by using 12.4inch front BLU
Components:
Main frame, Plate, Hole cover, Gripper, Nozzle, Adapter
Maintenance:
After disassembling the nozzle and gripper, rinse the dispense with warm water. (Don’t use the scrubber). Place the lids on top of the dispenser during non-operation.
Waterproof:
Dispensing area (upper part): 100% waterproof; Display area (control part): Water resistant
Note:
This product is available from 2018 in the following countries and regions: Europe, Oceania, Africa, Middle East, India, Japan, Russia, China, Taiwan, Hong Kong
ReverseTap Premium Counter-Top w/Backlit Display
Single Nozzle
| Info | |
|---|---|
| Model | RD-S1 |
| Product Size | 248 x 372 x 140 (mm) |
| Product Weight | 6.5 kg |
| Packaging Size | 294 x 430 x 190 (mm) |
| Packaging Weight | 7.5 kg |
Reversetap RD-S1 FEATURES:
Features:
7.6inch BLU can be attached
Components:
Main frame, Plate, Hole cover, Gripper, Nozzle, Adapter
Waterproof:
Dispensing area (upper part): 100% waterproof; Display area (control part): Water resistant
Maintenance:
After disassembling the nozzle and gripper, rinse the dispense with warm water. (Don’t use the scrubber). Place the lids on top of the dispenser during non-operation.
Note:
This product is available from 2018 in the following countries and regions: Europe, Oceania, Africa, Middle East, India, Japan, Russia, China, Taiwan, Hong Kong
